Quick Details
Standard:ASTM, BS, DIN, GB, JIS,
Grade:10#-45#, A53-A369, Q195-Q345, ST35-ST52,
Thickness:1.24 - 60 mm
Section Shape:Round
Outer Diameter: 6 - 610 mm
Place of Origin:HB, China (Mainland)
Secondary Or Not:Non-secondary
Application:structure/fluid/water and gas/boiler etc
Surface Treatment:black painting/galvanized /oiled etc
Special Pipe:Thick Wall Pipe
Alloy Or Not:Non-alloy
|
Item
|

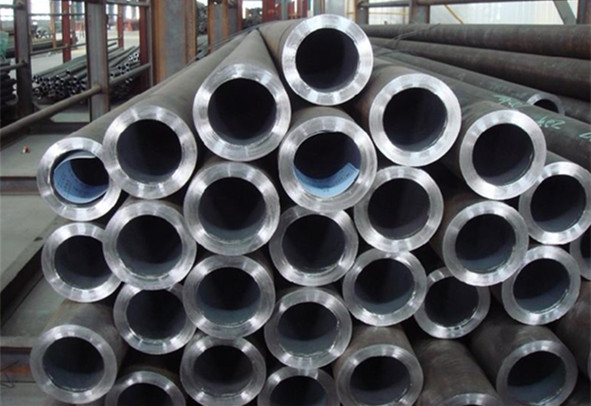

Mild steel seamless pipe
|
|
Standard
|
ANSI,ASTM
A192/A179/A106/A53/A500,ASME
SA192/SA179/SA106/SA53/SA500 ,API.DIN,GB.JIS
|
|
material
|
A106 Gr A/B
|
|
OD
|
1/8"-48",10mm-1219mm
|
|
WT
|
SCH5,SCH10,SCH20,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XXS
|
|
Usage
|
Structure Use, water
transport, Building, Machinery, Traffic, Aviation, Oil development and so on
|
|
Other
test
|
HY,ET according to request
|
|
Length
|
2-12m Random,5.8M FIXED,6M
FIXED,9M FIXED
|
|
Surface
|
Black paint as rusty protect,
capped ends
|
|
Marks
|
As per customers' requirement
(Hard marking or spray marking)
|
|
Packing
|
In bundles of max 3 tons
each, tied in 6 points with steel wire, each with two slings at the ends for
lifting during loading and discharging operations.
|
|
Shipment
|
In bundles, shipped in 20 or
40 feet containers, break bulk vessel acc to QTY and discharge port
|
|
Ends
|
2"below plain
ends,2" above beveled ends, threaded ends available
|
|
Method
|
140mm below cold drawn,140mm
above hot rolled,273mm above hot expand
|
Chemical composition:
|
Grade
|
c≤
|
Mn
|
P≤
|
Cr≤
|
Cu≤
|
Mo≤
|
Ni≤
|
V≤
|
S≤
|
Si≤
|
|
A
|
0.25
|
0.27-0.93
|
0.035
|
0.40
|
0.40
|
0.15
|
0.40
|
0.08
|
0.035
|
0.10
|
|
B
|
0.30
|
0.29-1.06
|
0.035
|
0.40
|
0.40
|
0.15
|
0.40
|
0.08
|
0.035
|
0.10
|
|
C
|
0.35
|
0.29-1.06
|
0.035
|
0.40
|
0.40
|
0.15
|
0.40
|
0.08
|
0.035
|
0.10
|
Mechanical properties:
|
Grade
|
Rm Mpa
Tensile Strength
|
Mpa
Yield point
|
Elongation
|
Delivery
condition
|
|
A
|
≥ 330
|
≥ 205
|
20
|
Annealed
|
|
B
|
≥ 415
|
≥ 240
|
20
|
Annealed
|
|
C
|
≥ 485
|
≥ 275
|
20
|
Annealed
|
|
